Cast Iron Chevrolet Compatible Blocks Available Through Brodix®

BRODIX now offers small block and big block Chevrolet compatible cast iron blocks to enhance your
racing programs. These new blocks will offer you another affordable option for your racing needs.

CAST IRON BIG BLOCK
CHEVROLET COMPATIBLE BLOCKS
AVAILABLE THROUGH BRODIX®

• Made in the USA
• Premium Iron Alloy
• 4.250, 4.500, and 4.600 Bore Sizes Available
• 9.800 or 10.200 Deck Heights Available
• Standard Cam Location
• Standard Big Block Cam Diameter
• 2-Piece Rear Main Seal
• Lifter Bores Available in .842 o.d. or .903 o.d. Diameter
• Standard Oil Pan
• Priority Main Oiling
• Wet or Dry Sump
• Nodular Iron 4-Bolt Splayed Main Caps
• Standard Fuel Pump Boss
• Additional 10° Head Bolt Lugs Machined in Deck Area
• Accepts Standard Clutch Linkage
• Standard Starter Location
• Standard Motor Mounts

PROUDLY MADE
IN THE USA!

flag
dsc_0935
PART # BORE LIFTER DECK
BR B4284298 4.250 .842 9.800
BR B4584298 4.500 .842 9.800
BR B4684298 4.600 .842 9.800
BR B4590398 4.500 .903 9.800
BR B4690398 4.600 .903 9.800
BR B4584212 4.500 .842 10.200
BR B4684212 4.600 .842 10.200
BR B4590312 4.500 .903 10.200
BR B4690312 4.600 .903 10.200

Block will require align honing.
Special oil restrictors are available only through BRODIX.
Block parts kits containing all plugs, dowel pins, and cam bearings are available from BRODIX.

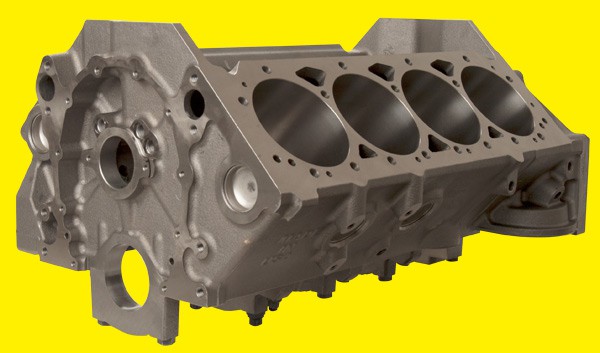

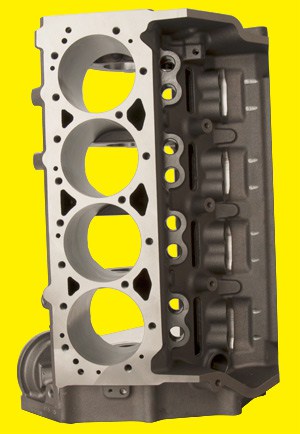

CAST IRON SMALL BLOCK
CHEVROLET COMPATIBLE BLOCKS
AVAILABLE THROUGH BRODIX®

• Made in the USA
• Premium Iron Alloy
• 4.000 and 4.125 Bore Sizes Available
• 9.025 Deck Height
• Standard Cam Location
• Standard Small Block Cam Diameter
• 2-Piece Rear Main Seal
• .842 o.d. Lifter Bore Diameter
• Standard Oil Pan
• Priority Main Oiling
• Wet or Dry Sump
• Nodular Iron 4-Bolt Splayed Main Caps
• Standard Fuel Pump Boss
• Accepts Standard Clutch Linkage
• Standard Starter Location
• Standard Motor Mounts
block5

PROUDLY MADE
IN THE USA!

flag
block1
PART # BORE MAINS LIFTER DECK
BR S400035842 4.000 350 .842 9.025
BR S412535842 4.125 350 .842 9.025
BR S412540842 4.125 400 .842 9.025

Block will require align honing.
Special oil restrictors are available only through BRODIX.
Block parts kits containing all plugs, dowel pins, and cam bearings are available from BRODIX.
